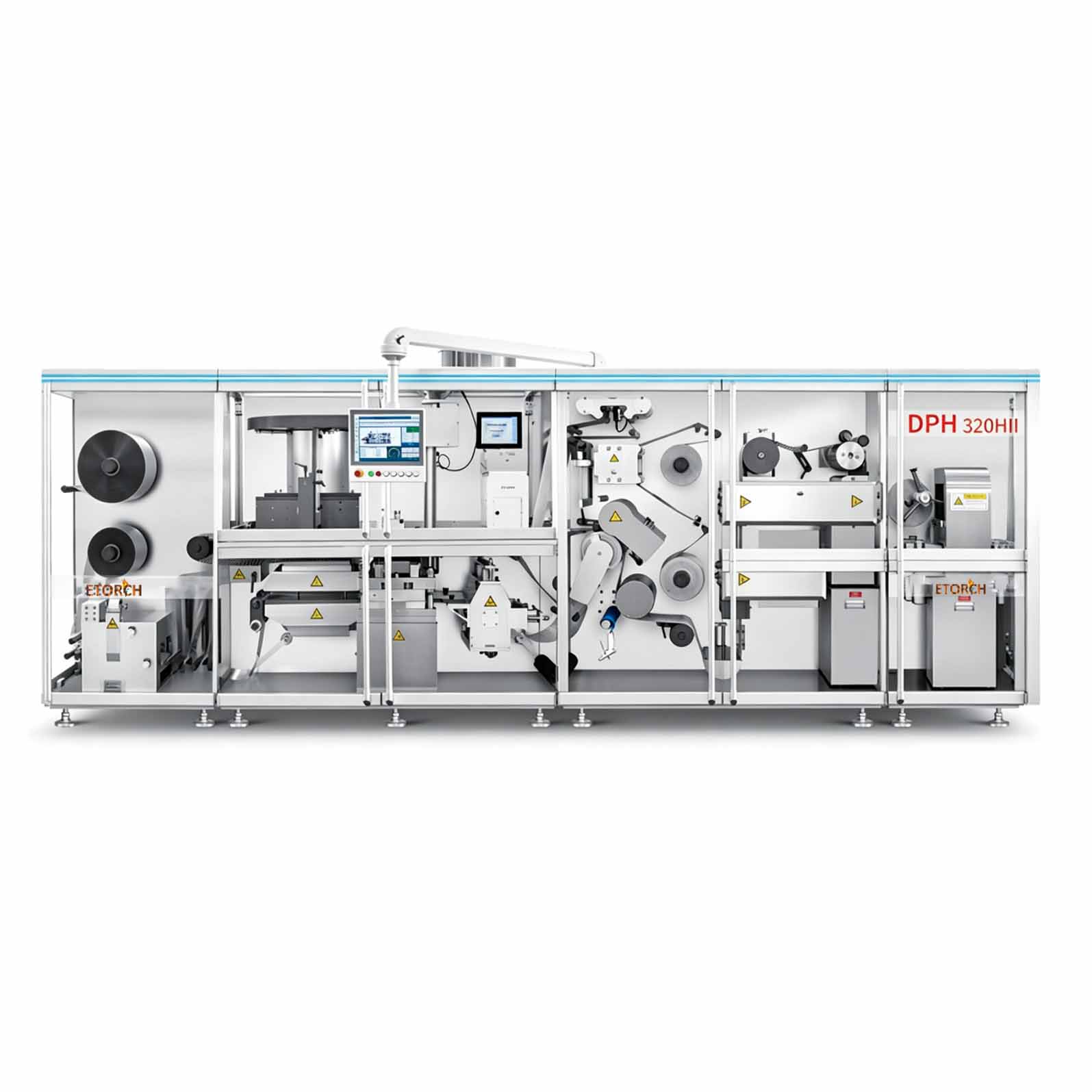

Standalone Function
Independently completes the full blister packaging process, including forming / feeding / sealing / punching, suitable for high-speed production of both Alu-PVC and Alu-Alu blisters, meeting GMP requirements for efficient and continuous manufacturing.

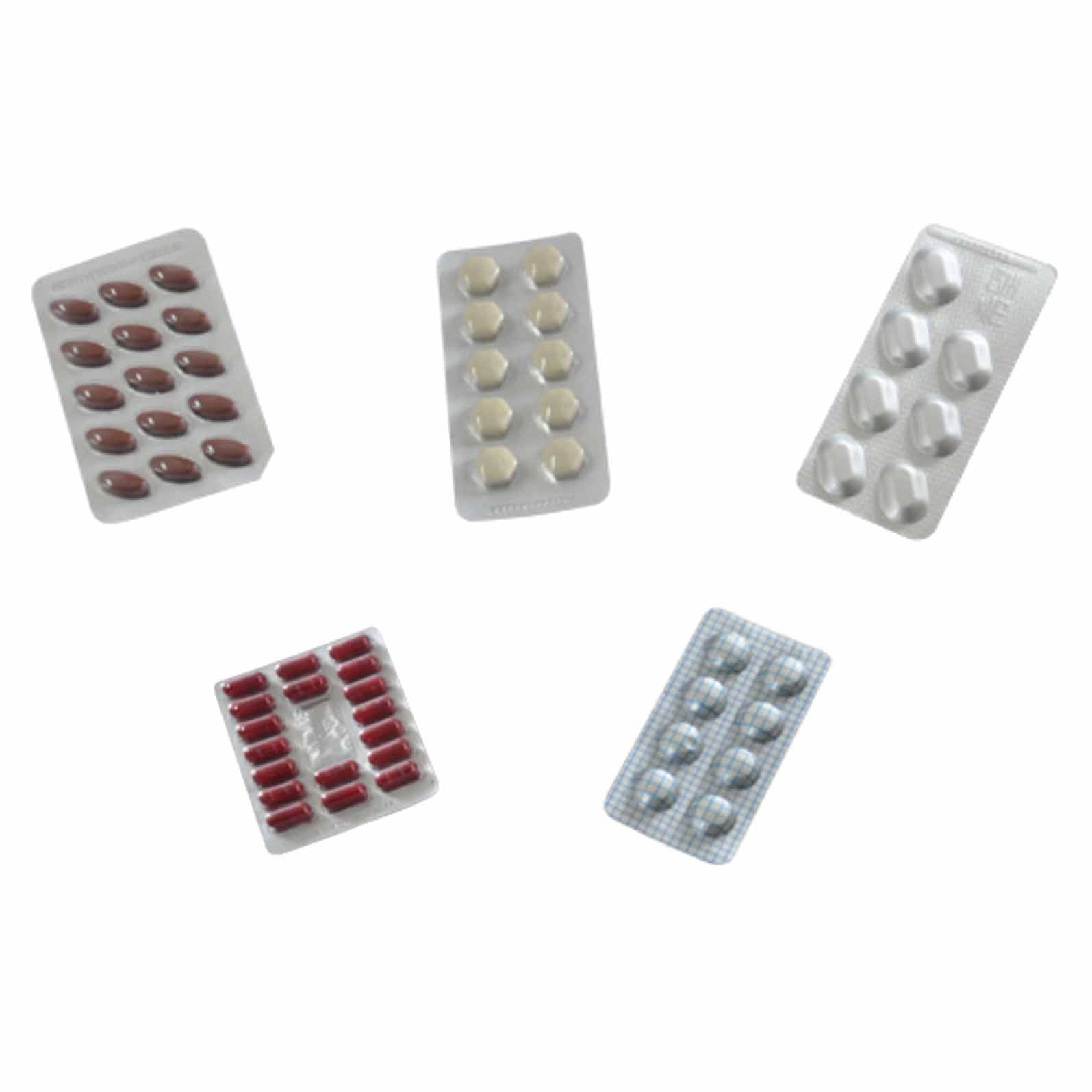

Applicable Packaging & Specifications
Packaging Type: Alu-PVC and Alu-Alu blisters
Applicable Products: Tablets, capsules, food products, medical devices, etc.
Max. Forming Size: 320 × 280 mm
Max. Forming Depth: 12 mm
Production Capacity: 10,800 – 54,000 blisters/hour
Process Flow
Feeding → Machine Process: PVC heating & forming → product feeding → aluminum foil heat sealing → embossing → punching → Finished product output
Key Technical Parameters

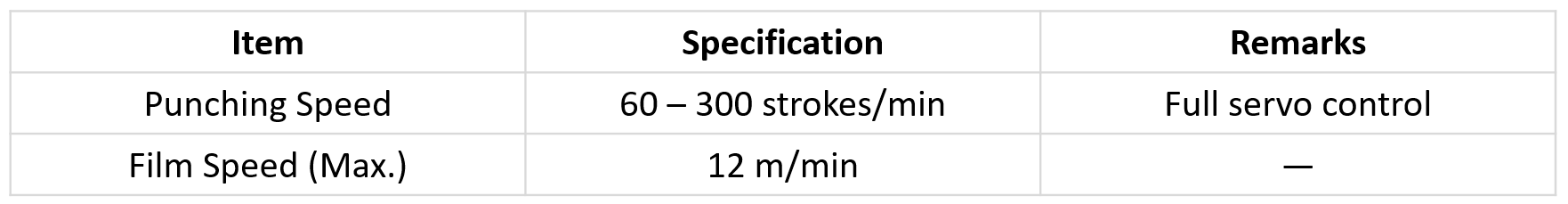

| Item | Specification | Remarks |
|---|
| Punching Speed | 60 – 300 strokes/min | Full servo control |
| Film Speed (Max.) | 12 m/min | — |
| Total Power | 29.5 kW | — |
| Power Supply | 380 V / 50 Hz | Three-phase, five-wire |
| Overall Dimensions | 5000 × 1500 × 2100 mm | — |
Structure & GMP Design
The machine adopts a modular split-structure design with a rational station layout, facilitating maintenance and cleaning.
All product-contact parts are made of 316L stainless steel and non-toxic materials, fully compliant with GMP standards.
Positive-pressure forming and roller heat-sealing processes ensure firm blisters and flat, neat plates, improving packaging quality.
By integrating the advantages of flat-plate and rotary drum blister machines, it achieves high punching frequency, stable operation, and quick mold changeover, significantly improving production efficiency while reducing energy consumption.
Supports trim-free punching (no lateral waste edge), greatly saving packaging materials (resulting in considerable annual cost savings), and enables automatic, orderly discharge of finished products for easy cartoning or line integration.
Control System
Equipped with a Siemens SIMOTION motion control system, enabling synchronized control of 10 servo axes and integrating motion, logic, and process control.
Features an intelligent HMI supporting multi-product production modes, parameter setting, data acquisition, and remote monitoring.
Highly flexible system allows quick product changeover and parameter adjustment, reducing setup time and maintenance costs.
Supports three-level access control and fault diagnostics, enhancing operational safety and traceability.
Utility Requirements

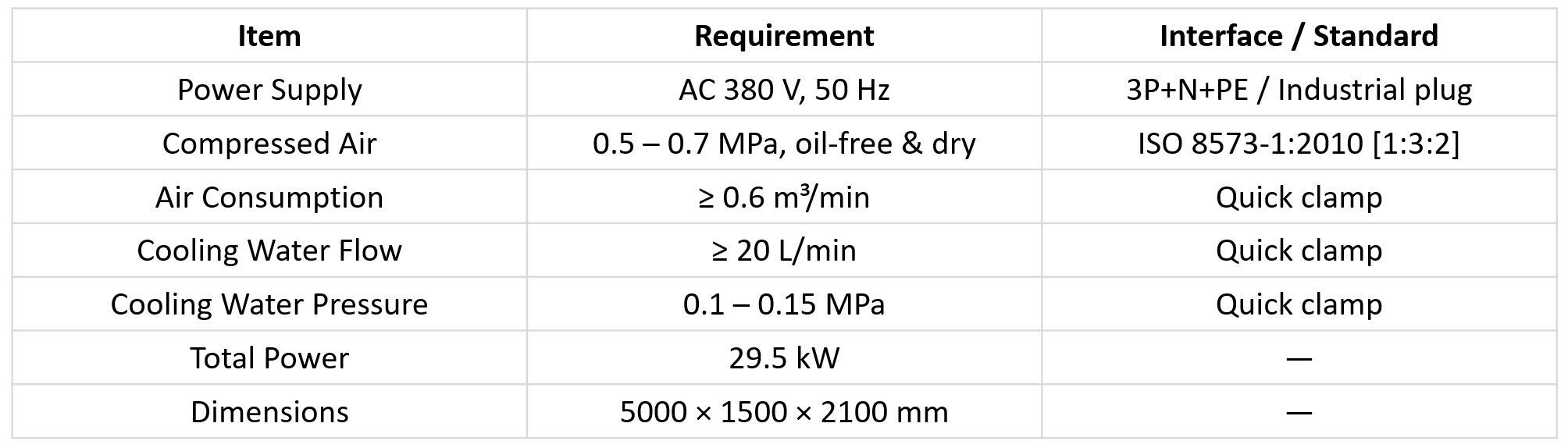

| Item | Requirement | Interface Standard |
|---|
| Power Supply | AC 380 V ±10%, 50 Hz | Industrial plug |
| Compressed Air | 0.5 – 0.7 MPa, oil-free & dry | ISO 8573-1:2010 [1:3:2] |
| Air Consumption | ≥ 0.6 m³/min | Quick clamp |
| Cooling Water | ≥ 20 L/min, ambient temperature | Quick clamp |
| Cooling Water Pressure | 0.1 – 0.15 MPa | Quick clamp |
